Remote monitoring by HW group

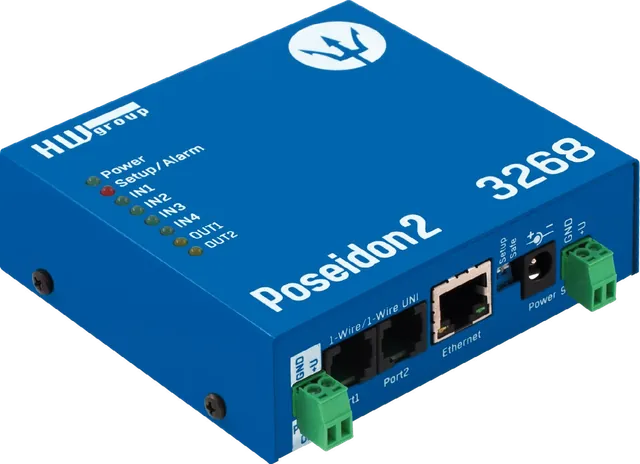

LAN monitoring unit for 8 sensors, 4 digital inputs and 2 relay outputs

• Sensors8× 1-Wire UNI / 1-Wire
• Inputs4× digital input with S0 pulse counters
• Outputs2× Relay Output 50 V / 1 A + 8× Virtual Digital Outputs
• ProtocolsMQTT, SNMPv1, SNMPv3, HWg-PUSH, Modbus/TCP, HTTPs, IPv6, XML, netGSM

This is the compact one I'd put in a cabinet or a small server room. It reads 8 1-Wire UNI sensors and 4 detectors, switches 2 relays, and alerts by email, SNMP trap or SMS through an SMS-GW3 gateway.

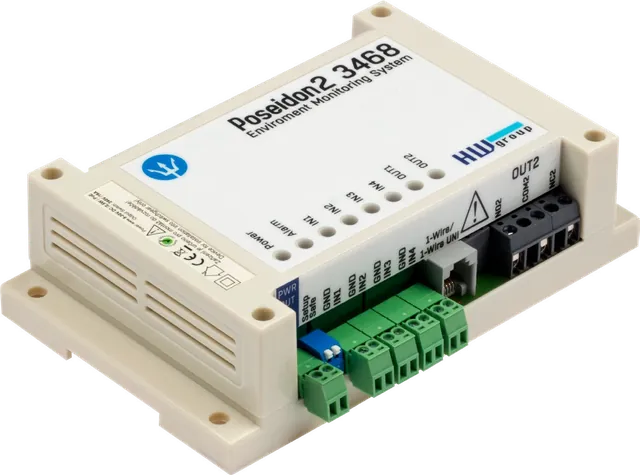

LAN monitoring unit for 8 sensors and 4 inputs with 2 relays rated 230 V / 16 A

• Sensors8× 1-Wire UNI / 1-Wire
• Inputs4× digital input with S0 pulse counters
• Outputs2× relay output 230 V / 16 A + 8× Virtual Digital Outputs
• Power9 to 30 V DC, -48 V, PoE

Same 8 sensors and 4 inputs as the 3268, but the two relays switch 230 V / 16 A loads directly, so it can control a fan, a heater or a pump. It also runs from -48 V, which telco sites need.

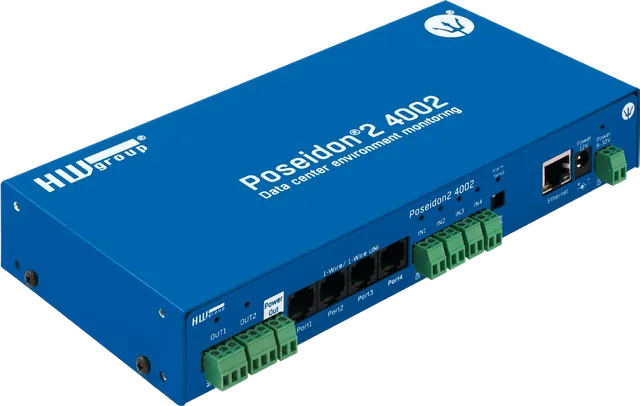

LAN monitoring unit for 42 sensors (16 1-Wire UNI + 26 RS-485), 12 inputs, 4 relays

• Sensors16× 1-Wire UNI / 1-Wire + 26× RS-485 industrial sensors
• Inputs12× digital input with S0 pulse counters
• Outputs4× Relay Output 50 V / 1 A + 8× Virtual Digital Outputs
• ProtocolsMQTT, SNMPv1, SNMPv3, HWg-PUSH, Modbus/TCP, HTTPs, IPv6, XML, netGSM

This is the big Poseidon2 for a full server room. It takes 16 1-Wire UNI sensors plus 26 industrial sensors over RS-485, 12 detectors and 4 relays, with HTTPs, IPv6 and SNMPv3 for the security team.

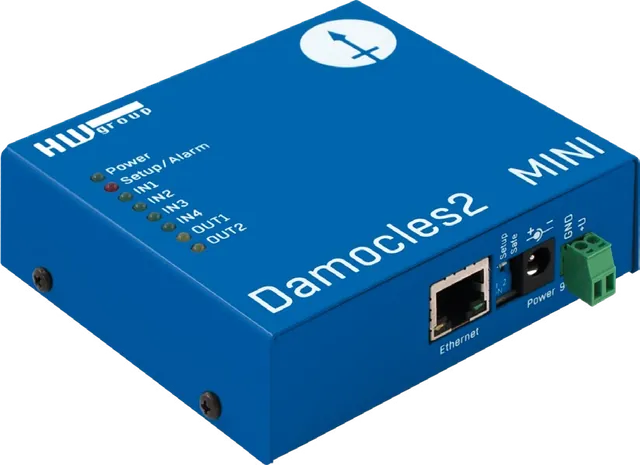

Compact Ethernet I/O with 4 digital inputs and 2 relay outputs

• Inputs4× digital input (NO/NC dry contact), 4× 32-bit pulse counter
• Outputs2× relay contacts (NC-COM-NO), max. 2 A / 24 V
• ProtocolsModbus/TCP, HTTP, NTP, SMTP, netGSM, HWg-PUSH, SNMP, XML
• Logger250,000 records (DI, DO)

The smallest Damocles2. Four dry contact inputs with pulse counters for door contacts or meters, two relays up to 2 A / 24 V, and an email, SMS or SNMP trap when an input changes.

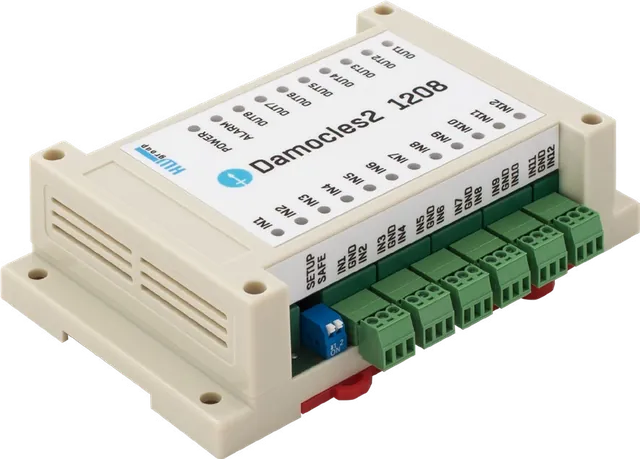

Industrial Ethernet I/O with 12 digital inputs and 8 open collector outputs

• Inputs12× digital input (NO/NC dry contact), 12× 32-bit pulse counter
• Outputs8× open collector, 50 V, max. 500 mA per output, max. 1,500 mA all outputs
• ProtocolsModbus/TCP, HTTP, NTP, SMTP, netGSM, HWg-PUSH, SNMP, XML
• Logger250,000 records (DI, DO)

This is the one I'd pick when I need many inputs at a low cost per pin. Twelve dry contact inputs with pulse counters, eight open collector outputs, and a 250,000 record log on board.

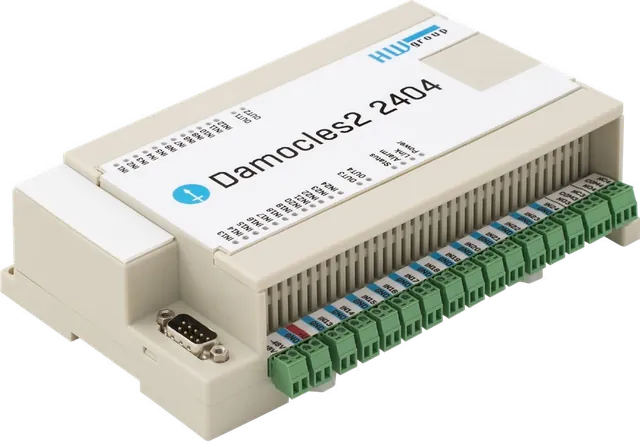

Industrial Ethernet I/O with 24 digital inputs, 4 relay outputs, PoE and -48 V power

• Inputs24× digital input (NO/NC dry contact) with S0 pulse counters
• Outputs4× relay contacts (NC-COM-NO), max. 4 A / 24 V
• ProtocolsModbus/TCP, HTTP, NTP, SMTP, netGSM, HWg-PUSH, SNMP, XML
• Power9 to 30 V DC, -48 V, PoE

The biggest Damocles2: 24 dry contact inputs with pulse counters and 4 relays up to 4 A / 24 V. It runs on 9 to 30 V DC, -48 V or PoE, so it fits a telco site as well as a smart building.

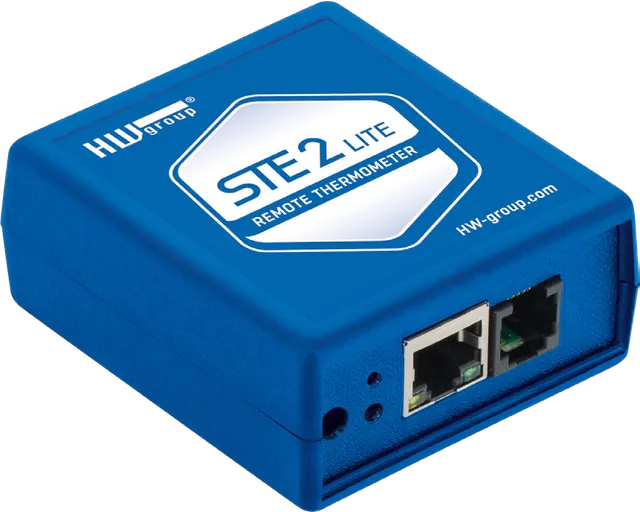

LAN and WiFi thermometer with 1 RJ11 port for up to 4 sensor values and email alerts

• Sensors1 port RJ11, 4 sensor values in total
• ConnectivityLAN, WiFi
• AlarmsE-mail, HWg-Push, SMS & Voice Call (with SMS-GW3 LTE)
• M2M Open APISNMP v1, XML over HTTP, HWg-Push

This is the simplest device I have. One RJ11 port for up to 4 sensor values, a 1 m temperature sensor in the box, and an email when the temperature leaves the range; SMS and calls go through the portal or an SMS-GW3 LTE.

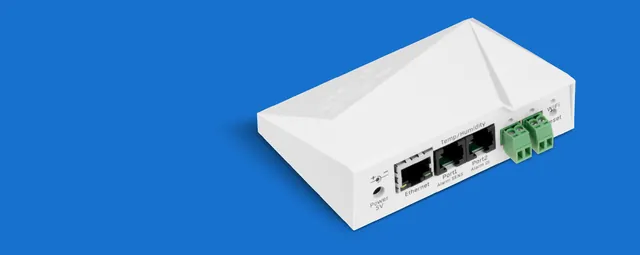

LAN and WiFi monitoring unit with 2 RJ11 ports for 5 sensor values and 2 digital inputs

• Sensors2 RJ11 ports, 5 sensor values in total
• Digital inputs2× dry contact input
• ConnectivityLAN, WiFi, PoE RJ-45
• AlarmsEmail, HWg-Push, SMS & Voice Call (with SMS-GW3 LTE)

This is the one I'd put on a pharmacy fridge or in a small IT room. Two RJ11 ports for 5 sensor values, two dry contact inputs for a door contact or smoke detector, a 3 m temperature sensor in the box, and PoE if you want no adapter.

Professional LAN and WiFi unit for 15 sensor values with SNMPv3, SNMP traps and IPv6

• Sensors2 RJ11 ports, 15 sensor values in total
• Digital inputs2× dry contact input
• ConnectivityLAN, WiFi, PoE RJ-45
• M2M Open APISNMP v1/v2, SNMP v3, XML, HWg-Push

The professional STE2. Same two RJ11 ports and two inputs as the R2, but it handles 15 sensor values and adds SNMPv3, SNMP traps, HTTPS custom certificates and IPv6 for a corporate network.

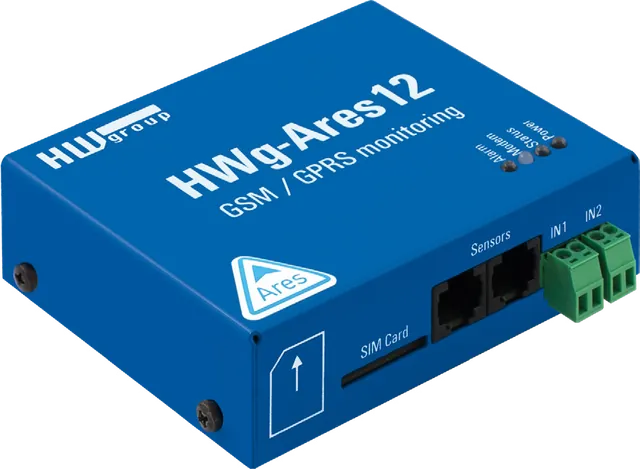

GSM monitoring unit for 14 sensors and 2 dry contact inputs with battery backup

• SensorsUp to 14 (1-Wire / 1-Wire UNI, RJ11), sensor distance up to 60 m
• Dry contact inputs2 (I1, I2), up to 50 m
• ConnectivityGSM / GPRS Quad-Band 850/900/1800/1900 MHz
• AlertsUp to 5 SMS / call numbers, up to 5 e-mail addresses, SensDesk portal

The GSM version. Up to 14 1-Wire UNI sensors on RJ11, 2 detectors, and an internal battery with up to 24 hours of backup power; it e-mails up to 5 addresses and calls or texts up to 5 numbers when a threshold is crossed.

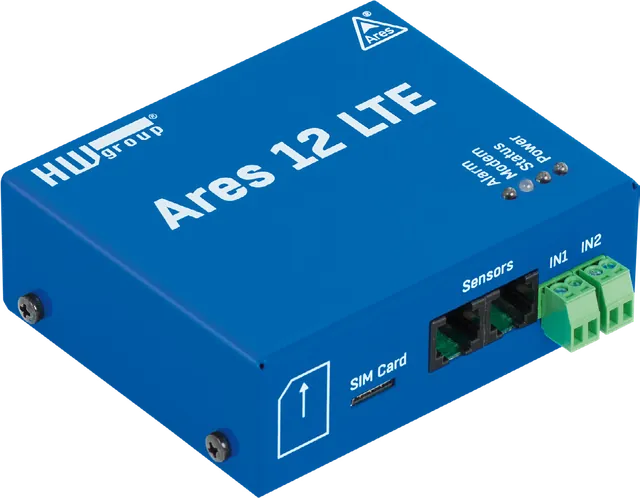

LTE monitoring unit for 14 sensor values and 2 digital inputs, configured from the portal

• Sensors2× RJ11 port (1-Wire UNI), up to 14 sensor values, up to 60 m
• Digital inputs2× DI (dry contact) + pulse counter, up to 50 m
• ConnectivityFDD LTE bands B1/B3/B5/B7/B8/B20, GSM 900/1800, SIM card not included
• Alerts5× E-mail / 5× SMS+Ring (voice call from device needs 2G or 3G coverage)

The LTE version for remote sites without LAN. Up to 14 sensor values on 2 RJ11 ports, 2 inputs with pulse counters, and alerts by email, SMS or voice call, all configured remotely from HWg-cloud.com or SensDesk.

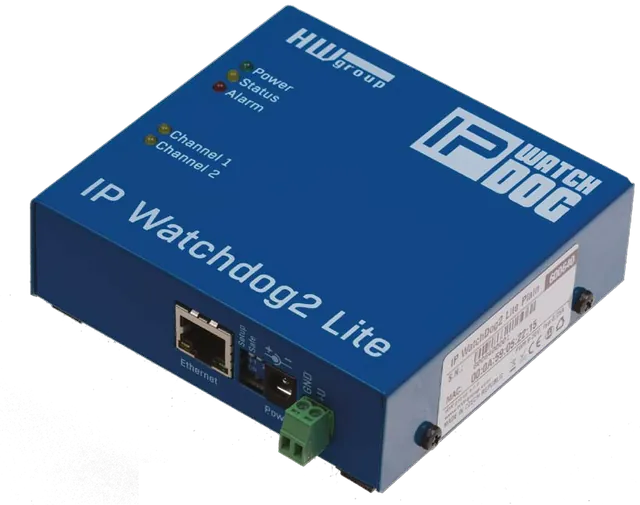

Watchdog that monitors LAN devices by PING or WEB and restarts up to 2 of them via relay

• Functionality detection10 LAN devices, PING, WEB
• Relay output2 channels, max. 30V / 1A DC, max. 50V / 0,5A AC
• CommunicationSNMP, SNMP Trap, HWg-Push
• InstallationStandalone, Rack 19", DIN

This is the small watchdog for an IP camera or a WiFi access point. Two channels, two relay outputs, PING or WEB checks, and an email or SMS via an external SMS gateway when it has to reboot something.

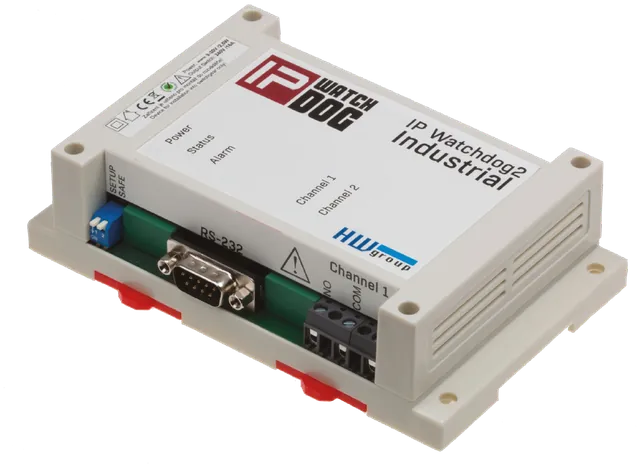

Industrial watchdog for 10 LAN devices, RS-232 heartbeat, 2 relays rated 110/230V 16A

• Functionality detection10 LAN devices, PING, WEB, RS-232
• Relay output2x 110/230V 16A
• CommunicationSNMP, SNMP Trap, Modbus/TCP, HWg-Push
• InstallationWall / DIN rail mounting

The industrial watchdog. It supervises up to 10 devices over IP or an RS-232 heartbeat, switches two 110/230V 16A relays, and can turn on a warning light or its internal beeper when something stops responding.

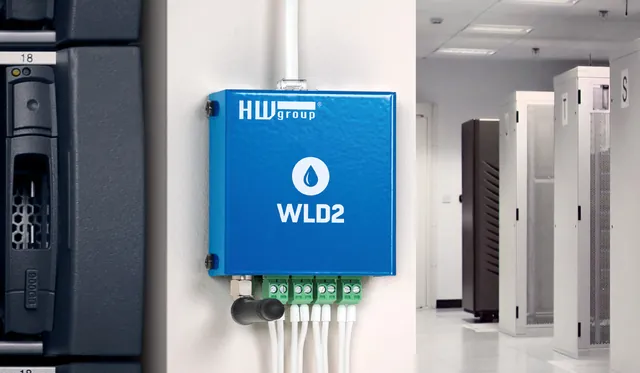

Four-zone water leak detector with sensing cables, LAN, WiFi and PoE

• WLD zones4 (WLD1 to WLD4), sensing cable A / B, 4× terminal block
• Cable lengthMax. 185 m / zone, extendable with up to 100 m of non-sensitive cable
• ConnectivityRJ45 (10/100BASE-T), WiFi 802.11 b/g/n 2,4 GHz
• Power5V / 250 mA or PoE RJ45 IEEE 802.3af Class 0

Four independent zones of sensing cable, each up to 185 m, and it detects a disconnected or damaged cable too. It sends email, SNMP trap or portal alerts, and SMS or a phone call through an external SMS-GW3 LTE.

NB-IoT battery unit with 2 RJ11 ports for up to 4 sensor values, portal required

• Sensor ports2× RJ11 (1-Wire / 1-Wire UNI), 4 sensor values in total, max. 60 m per port
• ConnectivityNB-IoT, Vodafone (global) SIM, 3 years connectivity in the subscribed version
• BatteryLithium 3V CR123A, up to 3 years with 1 temperature sensor
• ProtocolUDP/IP (COAP)

This is the one I'd stick next to a remote fridge or in a greenhouse. Two RJ11 ports for up to 4 sensor values, a CR123A battery that lasts up to 3 years with one temperature sensor, and the portal sends the email, SMS or call.

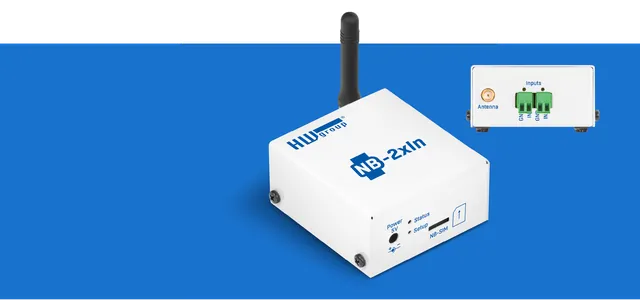

NB-IoT battery unit that sends 2 digital inputs with S0 pulse counters to the portal

• Inputs2× DI (dry contact) with S0 32-bit pulse counter, min. pulse width 20 ms
• Max. distance10 m
• ConnectivityNB-IoT, Vodafone (global) SIM, 3 years connectivity in the subscribed version
• BatteryLithium 3V CR123A, up to 3 years / 20 °C

Two dry contact inputs with pulse counters, so it reads a door contact, a smoke detector or a water meter with S0 output where there is no LAN. The portal alerts when an input switches, or when the device goes silent.

NB-IoT unit with 2 latching relay outputs controlled from the portal

• Outputs2× DO (latching relays)
• ControlManually from the portal or based on alarms from other devices
• ConnectivityNB-IoT, subscribed version with 3 years SIM included
• PowerInternal non-rechargeable battery or external power supply

This is the only NB unit that switches things. Two latching relays I can flip from the portal by hand or from an alarm on another device, powered by an internal battery or an external supply.

NB-IoT battery water leak detector with one sensing cable zone, portal required

• WLD zones1 zone, sensing cable A / B
• Cable lengthMax. 60 m
• ConnectivityNB-IoT, subscribed version with 3 years SIM included
• PowerInternal non-rechargeable battery or external power supply

This is the leak detector for a basement or a remote pump room with no network. One zone of sensing cable up to 60 m, an internal battery, and the portal raises the alarm by email, SMS or call.

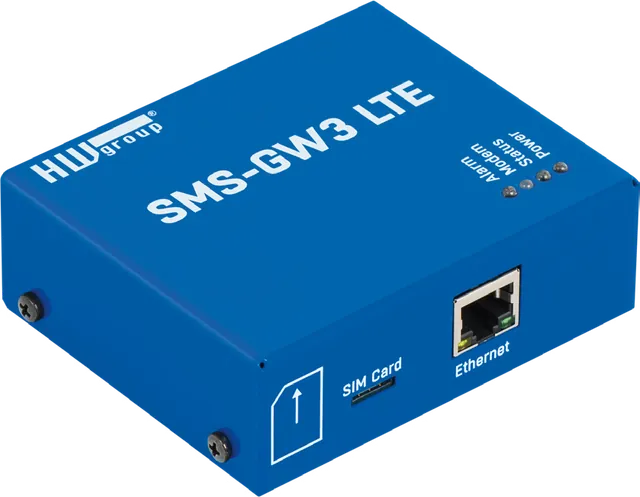

LAN gateway with LTE modem that sends SMS alarms from all HW group devices with one SIM

• ConnectionEthernet 100 Mbit/s; FDD LTE B1/B3/B5/B7/B8/B20, WCDMA B1/B5/B8, GSM 900/1800
• SMS queue memory100 messages
• AntennaExternal, SMA Quad-Band, 3m
• Power9 to 15 V / 0,4 A

This is how the LAN devices get to send SMS. One SIM card in the gateway, every Poseidon2, Damocles2, STE2 or WLD2 on the network uses it, and each device keeps its own list of phone numbers.

LAN gateway with Quad-Band GSM (2G) modem that sends SMS alarms from HW group devices

• ConnectionEthernet 100 Mbit/s; GSM Quad-Band 850 / 900 / 1800 / 1900 MHz
• SMS queue memory100 messages
• AntennaExternal, SMA Quad-Band, 3m
• Power9 to 15 V / 0,4 A

The GSM version of the SMS gateway. Same idea, one SIM for all devices plus the Nagios plug-in, with a Quad-Band GSM modem for any GSM network around the world.

RS-485 converter for 4 1-Wire probes (6 values) or 4 dry contacts on a Poseidon 2250 bus

• Inputs4× 1-Wire probe (temperature or humidity), 6 values at most, or 4× dry contact
• OutputRS-485 bus, RJ45 (includes power)
• Bus lengthUp to 1200 m (4000 ft)
• Per Poseidon 2250Up to 26 probes or 4 Spider units in total

This is a bus extender for the Poseidon 2250. It carries 4 temperature or humidity probes, or 4 dry contacts, over RS-485 up to 1200 m, and one Poseidon 2250 takes up to 4 Spiders.

Compact 12 V backup power for HW group devices with a relay that signals power failure

• Output12 V (double pin) / 1,5 A
• Accumulator1,3 Ah
• SignalingRelay 50 V / 1 A
• Power supply adapter12 V / 1,5 A

A small backup battery for any 12 V HWg device. It holds 1,3 Ah, delivers up to 1,5 A, and its relay switches the moment mains power fails, so a digital input can report the outage.

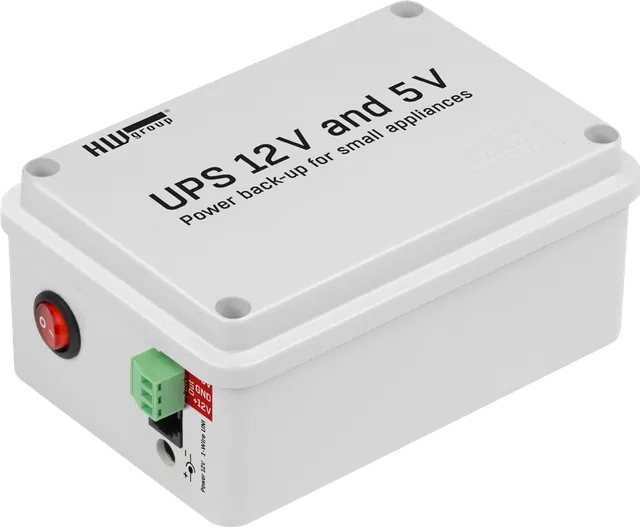

Backup power with 12 V and 5 V outputs that reports battery status over 1-Wire UNI

• Output12 V / 1,5 A + 5 V / 0,5 A
• Accumulator1,3 Ah
• Signaling1× 1-Wire UNI output: accumulator voltage, current, estimated operation time, adapter / accumulator status
• Power supply adapter12 V / 1,5 A

The same 1,3 Ah UPS with an extra 5 V output, so it powers a 12 V and a 5 V device at the same time. Instead of a relay it plugs into a 1-Wire UNI port and reports battery voltage, current and estimated run time as sensor values.

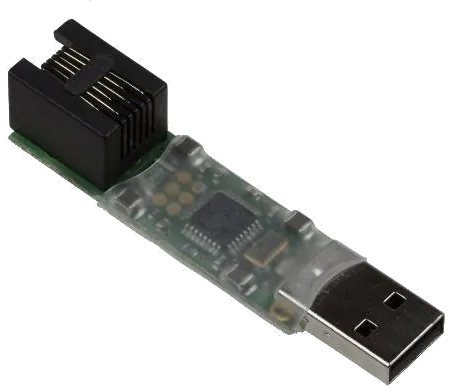

USB to 1-Wire UNI transmitter with HWg-Calibrator software for calibrating sensors

• HardwareHW USB / 1-Wire UNI transmitter + HWg-Calibrator software
• Calibration chart3 points (older converters) or 8 points (Sensor 60V 1W-UNI v2, Sensor 0-20mA 1W-UNI)
• Written to the sensorName, output unit, exponent, safe range MIN / MAX
• Bus scanScan button or Autoscan every 10 seconds

This is the tool for an installer who connects industrial 0-10V or 4-20mA sensors through a 1W-UNI converter. Plug it into a PC, scan the bus, and write a 3 or 8 point calibration chart, unit and safe range into the sensor.
